CHTC FONG’S Smart Dyeing & Finishing Innovations
CHTC Fong’s has been committed to the development and manufacturing of dyeing and finishing equipment for more than 50 years. In the past decades, CHTC Fong’s devoted to the development of energy-saving and emission reduction machines and now it becomes the basic conditions for dyeing factories. Today, we live in a digital era, though in the traditional textile industry, CHTC Fong’s has been with the times. Together with its well-known brands: Fong’s, Monforts Fong’s, Xorella, Then, Goller, FWT and Monforts, CHTC Fong’s dedicated in the development of Smart Dyeing & Finishing and join with the customers to build the intelligent dyeing factory.
The CHTC FONG’S Group presented the “one-stop” sustainable solution in dyeing and finishing range of “pre-treatment, dyeing, post-treatment and waste water treatment” at ITMA ASIA + CITME. CHTC FONG’S exhibited a full line of the most advanced and innovative products and technology including its new product- Fong’s Tecwin High Temperature Dyeing Machine, THEN AIRJETWINA erodynamic High Temperature Dyeing Machine, Goller Dyepadder Economica Nip-In-Trough, Monforts Fong’s Montex 6500 Stenter Frame Range, Monforts Fong’s Montex 6500 Air Filtration Omni Stenter Frame and Monforts Fong’s Monfongs Strahm HiPer Shrink Astra. In addition, CHTC FONG’S also demonstrated the innovative smart dyeing and finishing at the booth.

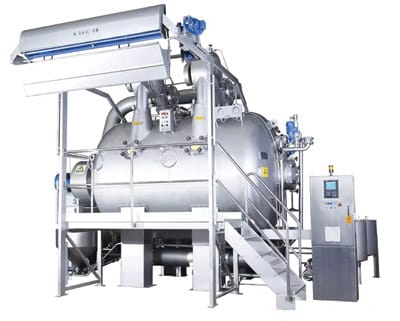

Then Airflow Airjetwin Aerodynamic High Temperature Dyeing Machine
AIRJETWIN high temperature airflow dyeing machine, the latest generation of dyeing equipment, is now being offered to fulfill the various requirements of dyeing process nowadays. Through finite element analysis (FEA), the airflow and water flow situation is well-analyzed for design optimization. In addition, by combining different THEN’S and FONG’S product advantages, the entire performance is further enhanced through a holistic design integration.
- Single-Blower for Multi-Tube Design: By utilizing single blower with frequency inverter and optimizing pipe network design, the air volumetric flow rate of each tube is evenly distributed
- Integrating Nozzle System: By adjusting various combinations of multiple spraying nozzle and sprayers, the best dyeing performance of a huge variety of fabrics can be achieved
- XY Internal Plaiter: Fabric is plaited to and fro inside the dyeing vessel to achieve an organized fabric stacking pattern inside the storage chamber. It enables smooth fabric lifting, higher fabric lifting speed and reduction of fabric entanglement in the chamber
- Overhead Cleaning System: Effective cleaning is provided through purging to rinse the kier head, thus ensuring no residue colour is left

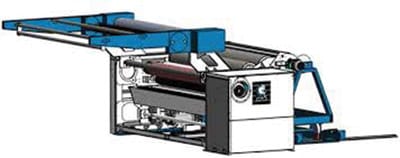

New GOLLER DYEPADDER ECONOMICA Nipin- Trough with Double Impregnation Mechanism
The 2018 New GOLLER DYEPADDER ECONOMICA Nip-in- Trough with Double Impregnation Mechanism provides even dyeing for knitted fabric without crease mark and distortion incurred. The newly-designed double impregnation mechanism provides further improvement on the impregnation effectiveness in combination of a lower running tension. As the ECONOMICA guarantees reproducibility and handling in the highest standard, a smooth and clear fabric surface can be expected after dyeing.
The deflection-controlled rollers of ECONOMICA are working according to the principle of the swimming rollers, irrespective of the overall pressure of the padder, the deflection of the squeezing rollers is always consistent with the set values to ensure an even dyeing over the fabric width. On top of the deflection-controlled rollers, the large diameter guide rollers ensure a smooth knitted fabric transport with minimal tension incurred, which is beneficial to the dyeing process as a whole. The double impregnation mechanism consists of a trough with a padder inside and with the minimum level of working liquor required. This mechanism provides sufficient impregnation and low-tension running condition for knitted fabric during the dyeing process. Furthermore, Thermplates keep the temperature of the dyebath as per the set value throughout the dyeing process, no matter it’s cool or hot.
With the precise dosing of dyestuff-alkali mixed, the application of precise and homogeneous pick-up and the linear nip of the deflection-controlled rollers, the GOLLER DYEPADDER ECONOMICA Nip-in-Trough with Double Impregnation Mechanism will always be the most ideal openwidth dyeing range for knitted fabrics dyeing in small to medium batches used.

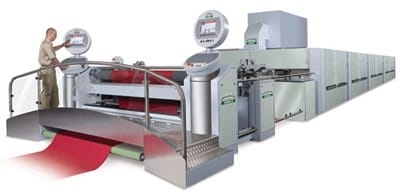

MONFORTS FONG’S MONTEX 6500 AIR FILTRATION OMNI
Montex 6500 Air filtration Omni (Abbreviation 6500 Omni), is based on the Montex 6500 stenter range in combination of the most advanced heat recovery and air filtration technology to evolve this stenter range into a more advanced environmental friendly machine.The heat recovery and air filtration device of this 6500 Omni stenter can filter the wax and oil from the exhausted air with high efficient but low energy consumption. The heat recovery is so high which could contribute the textile industry to achieve low carbon release target a step further.The modular design could allow different space requirement by different textile mills. Also this device is run with automatic cleaning function controlled by PLC by running its nozzles along the bar over the top of the filtration units. This will minimize the daily maintenance to the machine.
- TwinAir:Monforts patented Twin-Air technology allows top and bottom airflow to be regulated separately. It results in drying without marking and the most even temperature possible across the fabric. Also, it also could be equipped with Optiscan for Auto-Balance system.
- Nozzle System CAD Stream: its “Lay-on-Air”fabric supporting properties in air and with bulking effect through increased volume by its microtumbler effect. Attractive cost/benefit ratio with higher evaporation rates. It also provides continuous fabric support even at the chamber transition points.
- Reinforced Pin Chain: Besides the normal version of pin chain with tensile strength 2500N, it also exhibited the reinforced
version of pin chain with tensile strength 8000N in the show.
- Qualitex 750 Programmable logic process controller (PLC): Expandable and adaptable for practically all tasks arising in modern textile finishing. It has Programmable control functions, Operation of the range via panels along the machine, Storage of set-up data sets, Integration of setting values for measuring and control devices, Batch management, Network interfacing, Automatic nozzle pressure control, Prepared for teleservice, Maintenance and two-loop system via touch panels.
- Central Processing Control Software “Q-soft”: This software is for production planning and documentation with a central interface. All process data can be stored in a standardized database (ODBC=Open Data Base Connectivity) where all set points and actual values are filed with read and write access for set points.Three levels of networking interfacing are possible: 1) Interfacing to your network, 2) Output to a PC with graphic presentation (Monforlogic), 3) Interfacing with a process control system to include machines from other manufacturers as well.

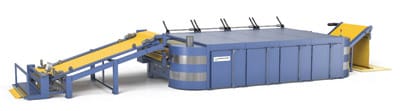

MONFORTS FONG’S New High-Efficiency Relaxation Dryer
Hiper Shrink Astra – MONFONGS STRAHM
In addition to the stenter frame range, MONFORTS FONG’S recently has introduced a new high-efficiency relaxation dryer which technology inherited from a Swiss textile machine company. This new dryer is named “Monfongs Strahm,” with model name “Hiper Shrink Astra,” for open-width and tubular knitted fabrics.
Its unique Swiss mechanical design focuses at high drying efficiency, low residual shrinkage, soft hand-feel and low operating costs. Its design also incorporates a heat recovery system (EnRec 1&2) that reduces energy consumption tremendously by half when it is compared with some conventional dryers.
It is different from general energy saving principle in the industry, which has higher capacity than that of traditional dryers. The Latin word ‘Astra’ in the model number of the machine embraces the company’s hope that the product will become the star of tomorrow in the dryer products of textile finishing Industry.

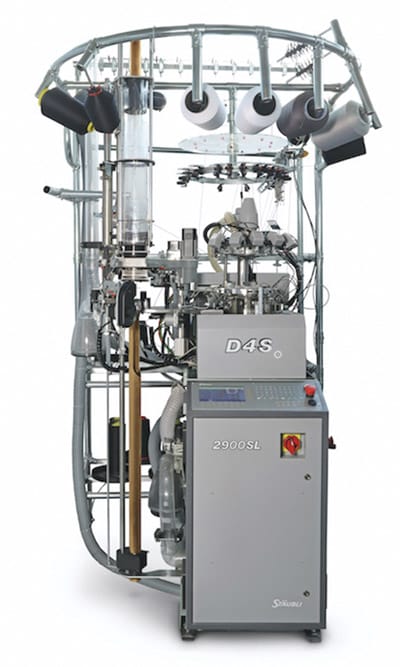

Stäubli Automatic toe linking device for increased efficiency
Automatic D4S toe linking device for increased efficiency the Asian knitting industry is constantly growing in importance. China, Vietnam, and South- East Asia are amongst the world’s leading export countries when it comes to knitted products. Whether recent applications such as sports shoes or traditional applications such as hosiery, virtually no household anywhere is without some sort of knitted good, the most basic example being socks. At this year’s ITMA Asia, Stäubli and its Deimo knitting solutions gave visitors a chance to discover the very latest automation solutions for sockknitting mills. These solutions allow mills to keep up with sock trends, maximise production efficiency, and meet the highest quality standards – and thus remain highly competitive.
The days of taking the sock off the knitting machine to close the toe are gone. The revolutionary new D4S closes the toes directly on the knitting machine – automatically, and without any operator intervention. The D4S toe linking device (patents pending) can be mounted on any new circular sock machine with a diameter of 3-½ to 4-½ inches and from 8 to 19 gauge.
Mills enjoy a wide range of benefits
The D4S toe linking device sews the toe closed while the sock-knitting machine simultaneously produces the next sock. The precise operation of the device ensures perfect linking quality. Thus, the D4S answers several key challenges in knitting: Minimising idle time, delivering higher-quality and higher-volume output, and reducing waste material, the increasing price of which eats into profit margins. Installing the D4S device on a sock-knitting machine promises a quick return on investment for the mill. In addition to the more efficient production, the mill will also benefit from enhanced operator convenience and expanded functionality, especially thanks to the independent 2900SL electronic controller.
Drastically shortened sock-knitting process
Two D4S toe linking devices was demonstrated in action on two circular sock-knitting machines at this year’s ITMA Asia. One machine was equipped with a 3- ¾” cylinder and 144 needles, and the other with a 3-¾” cylinder and 200 needles. Manufacturers were amazed to see for themselves how the device drastically shortens the sock-knitting process. Stäubli knitting solutions for hosiery, medium-to large diameter underwear, and seamless knitted goods With the 2900SL electronic controller, the DStyler programming system for knitting patterns, and DData for process monitoring and data recording during knitting, Stäubli offers a complete solution for knitters who demand high overall performance and powerful, userfriendly equipment. Manufacturers that automate their knitting process with these Stäubli solutions enjoy a significant costreturn ratio and be equipped to deliver products that delight their customers.
Extensive range of weaving process optimisation solutions (Stäubli booth E01/ Hall3)
Stäubli has been a leading supplier for the weaving industry for over a century. Visitors to the Stäubli booth in the weaving hall at ITMA Asia enjoyed a broad overview of the company’s Stäubli International machinery and solutions, which are perfectly adapted to the requirements of the Asian weaving industry:
- Weaving preparation solutions for mastering warp preparation and warp tying
- Shedding solutions for frame weaving for every type of weft insertion system (cam motions, dobbies)
- Electronic jacquard machines with harnesses, in formats for every woven application
- Weaving systems for carpeting and technical textiles
- Original Stäubli spare parts
Stäubli’s extensive range allows mills to master the entire weaving process in order to produce excellent results and benefit from optimum cost efficiency.
High accuracy dosing systems by Pirovano
Pirovano S.r.l is an Italian company that specialises in designing, manufacturing and installing industrial plants for fluids metering by weight. For nearly 25 years, the company has been manufacturing and exporting dosing systems for fluids worldwide. Pirovano S.r.l exports to more than 30 countries worldwide wood, PVC-PU coating and wallpaper sectors. The company is active in any sector where care and accuracy are needed in mixing different fluid components required for the formulation of the recipe. The ‘heart’ of Pirovano lies in the engineering and production. The company has an exclusive, patented dosing head, which it says offers an advantage over its competitors. Pirovano’s dosing systems allow for significant savings in raw materials, an extremely precise and fast dosage, a maximum guarantee of fidelity in colour reproduction and waste reductions. Additionally, the dosing systems can trace all the dosing operations, operate in a clean and safe environment and eliminate contamination risks, according to the company.
SETEX and Halo to provide comprehensive solution for processing and finishing
SETEX Schermuly textile computer GmbH, a market leader in designing, manufacturing and implementing automation solutions for the textile dyeing and finishing market, and the company Halo, ERP-provider and specialist for customized solutions from fibre to product, announce to have entered into a strategical partnership.
The strategic alliance allows the teams from SETEX and Halo to put into practice a comprehensive solution for processing and finishing of textiles via integration of Inteos and OrgaTEX components. Clients, namely the vertical manufacturers with knitting or weaving departments, will be pleased of the benefits of the range of Inteos modules, deeply integrated into the OrgaTEX platform and working out of the box.
“Both SETEX and Halo contribute a rich source of information and technology to the new OrgaTEX-inteos package, which goes far beyond providing just a software solution. Thanks to our SETEX locations around the world, the newly formed project management and excellent relationships with textile machine manufacturers, this collaboration allows us to provide, commission and support the new solution locally worldwide,” said Oliver Schermuly from SETEX.
The combination of Halo´s longstanding experience as provider of customized MES and ERP solutions and SETEX’s position as a market leader for textile automation solutions ensures a maximum in competence for fully integrated textile manufacturing solutions. As a result, Industry 4.0 will become a reality at your company,” states Marcus Ott of Halo. The new OrgaTEX-inteos solution enables SETEX to react adequate and flexible to different customer needs and to offer one-stop complete solution that meet the most specific individual requirements.

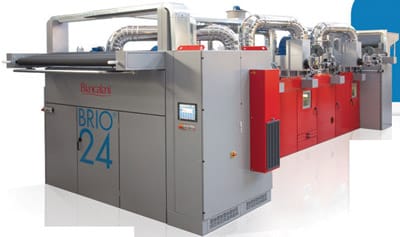

Biancalani’s new tensionless dryer for knit fabric
From one ITMA to another through four years of improvements, tests and updates, this is the story of Biancalani’s new BRIO 24 line, a tensionless dryer able to give dimensional stability to knitted fabric, both tubular and open. Now the time is ripe for this machine, which represents the evolution of a previous single tank version that was drying the knit fabric in discontinuous and that is working now for many years.
The current configuration of BRIO 24 foresees the passage of the material between the consecutive double-tank modules for the continuous treatment of the natural or blended knit fabric, mixed with viscose or other synthetic and artificial fibres. The article enters from one side of the machine and leaves the other side dry, soft and dense. The process consists the passage of knitted fabric through the tanks subjected to an intense high frequency vibration, inside which the knit dries, shrinks, obtains the maximum possible contraction for each type of texture and composition.
Several large knitwear producers, of global importance, have already shown a great deal of interest in BRIO 24, and some of them have already purchased it. This new machine, which offers great performances. Meanwhile Biancalani technologists and commercial staff will be now more than happy to offer assistance to all customers interested in obtaining information about the finishing machine BRIO 24 for knitted fabric and AIRO 24 continuous tumbler for every kind of woven fabric.
All the Biancalani machines, being covered by several international patents, use innovative and sustainable technologies for the finishing treatment of every kind of fabric. Besides, to provide in-depth information on the obtainable results, it is also possible to organize technical tests on customer’s fabric.

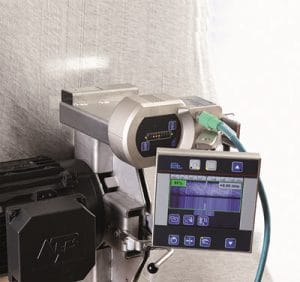

Automation and quality assurance from Erhardt+Leimer
Erhardt+Leimer presented several products from its broad portfolio for automation and quality assurance in the textile industry. One of them was the digital segmented roller guider system ELSMART SWS 97, allowing most efficient web guiding in enclosed machines in which extreme requirements placed on the system at temperatures of up to 100 °C along with steam and chemicals. Perforated high grade steel guiding profiles were developed for extremely damp and, in the majority of cases, very slippery web surfaces, providing sufficient friction for precise web guiding even in these difficult conditions, and even at high web speeds of up to 100 mtr/min (for standard applications); under special conditions a speed of up to 150 m/min is possible. A frequencycontrolled additional drive can be mounted to overcome friction forces and to guarantee minimal web tension. The SWS97 can be combined with the motor-driven spreading system ELSPREADER LGA 052, which is essential for reliable operation with knitted or loose-fed webs.
Automatic recognition of the front and back side of textiles
The ELSIDE camera system detects the structure of the material even at high production speeds and irrespective of the material distortion; in this way it is able to differentiate between the front and back side. ELSIDE is suitable for use in all textile manufacturing processes in which incorrectly sewn sections can have a negative influence on the downstream process. Before starting production, only a short teaching procedure is required during which the matrix CCD camera captures the structure of the textile web. Afterwards, an alarm signal is issued in the event of incorrectly sewn sections.
Cutting technology, proven a thousand times
Apart from this E+L presented two ELCUT cutting systems: The highly successful BTA80 edge cutter, sold more than 2000 times (in pairs) since it was launched in 2013, and the BT 2535 tube slitter with its FE 5204 matrix drop stitch sensor, which reliably detects a very wide range of different drop stitch forms. In addition, the ELFEED tenter guider, the ELTENS equipment for web tension measurement and control, the ELMAT solutions for temperature (dwell time), moisture and exhaust air control, the ELSTRAIGHT weft straightener and the camera-based ELCOUNT pick and course counter system were on exhibition.
BTSR launches latest yarn feeding technology
Visitors saw BTSR’s latest yarn feeding solution for hosiery and knitwear production.Based on BTSR’s proprietary Full Digital Core & Motor technology, the Ultrafeeder was first unveiled at ITMA Munich in 2007 and was designed to meet the demanding ‘constant tension’ yarn feeding requirements on a wide range of machines including sock/stocking, seamless, large diameter circular and flat knitting machines.
Using the latest digital technology, featuring a dual control on yarn feeding and yarn running speed, the Ultrafeeder offered high performance acceleration/deceleration dynamics, a high resolution measurement capability (0.1 mm) of the fed yarn and the ability to regulate energy consumption. This high performance yarn tension management system became an industry standard, considerably improving production efficiency, providing extra-cost savings (yarn consumption) and improving the product quality of companies operating throughout the knitting and hosiery supply chain.
Now, the Ultrafeeder2 has been developed by BTSR to provide its customers with an even more advanced yarn feeding solution.Ultrafeeder2 offers a new ergonomic design and is made from more advanced materials, most notably aluminum, magnesium and carbon fibre to which has optimized space around the wheel to make it easier for yarn threading and also increased the robustness and lightness of the device.
It also includes a new processor which improves the input yarn tension feeding control and offers an improved performance during the feeding of yarns with high absorption discontinuity. Overall, the new processer has increased the response time of the Ultrafeeder2 by ten times and has higher acceleration dynamics control.
Further benefits of the latest version include a new display position on top of the wheel which simplifies the process for the operator, a new high resolution load cell sensor for improved accuracy, and both clockwise and anticlockwise rotation so the yarn can be fed from either side. The Ultrafeeder2 also encompasses a new, BTSR-patented Quality Index system which means that feeding/process yarn quality issues or other anomalies can be monitored in real time.
LGL showcases yarn feeding technology
LGL Electronics, the Italian manufacturer of electronic yarn feeders, showcased a complete range of advanced and sustainable yarn feeding solutions at ITMA Asia + CITME. The range included the Spin 1, Ecopower, Ecompact and the Mini-series as well as the latest model made by LGL Hangzhou, the Mini CB (CAN BUS) which is suitable for all types of knitting machines.The Mini weighs 2.4kg and runs at speeds up to 950m/min (up to 650m/min with Mini+) and can be used for knitting yarns in counts of 5 to 600 denier.
It can also be installed in any desired position, whether vertical or horizontal, while the reserve yarn on the spool is monitored electronically. Z and/ or S rotation can be selected as needed with the yarn output controlled by LGL’s TWM (Tension Modulator) brake system, which is self cleaning and easily adjustable to keep tension constant. The Spin1tension controlling device is a ceramic, electronically controlled, ceramic tension sensor for a range of bare and elastomeric yarns that has been designed to react quickly to speed changes without producing tension peaks. It has maximum torque available over a large speed range (in particular at low speeds) and particular attention is paid to power consumption.
Visitors also were able to see the Ecompact a yarn feeder that offers smaller dimensions and reduced weight compared to previous models, something which LGL says is important on machines with a high number of feeders.
At 1.4kg, the Ecompact is nearly 1kg lighter than other options such as the Knitter while at 700m/min, is also almost twice as fast compared to the latter’s 360m/min. The unit has a spool diameter of 50mm and can knit yarns in counts of 5 to 600 denier. Ecompact also has a yarn consumption function which offers real time electronic measuring to all feeds (up to 256 max.) at the same time. Z and/ or S rotation can be selected as needed. It can also be installed in any desired position, whether vertical, inclined or horizontal.
KERN – LIEBERS presents Relanit Sinkers and Needles in OEM quality
With its huge range of products KERN-LIEBERS is one of the leading suppliers for the textile industry. Customers are machine manufacturers as well as textile manufacturers. Worldwide sales and support is guaranteed through the international network of subsidiaries and representations in over 80 countries covering all major textile markets around the globe.KERN-LIEBERS Textile offers a comprehensive portfolio of needles and sinkers for single cylinder sock machines.
New Generation of KERN – LIEBERS Relanit Sinkers
The textile market is in continual change. The technical standards of the machines and the know-how of all persons involved become higher and higher. In addition to the need of high speed machines also the specifications of the knitted fabric require increased standards with regard to the strength and mesh structure. In pursuit of this trend, the adjustment of all equipped elements for the knitting process is indispensable. Only then the highest quality standard can be achieved in order to assure the customer satisfaction at the maximum level.
Obviously this development also takes place for the Relanit machines of Mayer & Cie. The demand for high-quality knitted fabrics increases continuously in many markets. As a result of this, the machine settings and the tolerances need to be constantly improved this also leads to higher and changed specifications for the Relanit Sinkers.
The company has developed a new generation of Relanit Sinkers which fully meets the latest requirements of the market. This new generation enables the production of all kinds of knitted fabrics. A uniform pattern can be ensured even for highly advanced knitted fabrics. Due to the new development the range of strength of knitted fabrics can be considerably extended. Based on its long experience as a OEM supplier of Mayer &Cie, we have managed the perfect adjustments to reach the latest demands of the markets. This new “High End”product at the highest quality level is a further completion of the worldwide biggest sinker programme made by KERN-LIEBERS textile.The company recommends for high class knitting machines its original sinkers only. Have the benefit from the highest requirements fixed and controlled by the circular machine manufacturer.
Hosiery Machine parts from KERN-LIEBERS Needles in OEM quality for single cylinder sock machines
The quality of the knitted product depends heavily on the quality of the used needles. KERN-LIEBERS Textile offers high quality needles for virtually all machines, which are used for the production of socks. Needles from the company meet all OEM specifications required by the global market leader Lonati. They fulfill highest demands in terms of quality, are highly flexible, and have perfect surface integrity and rounding. The high quality of the needles results in a trouble-free operation of the hosiery machine. In addition, KERN-LIEBERS Textile offers a comprehensive product range of machine parts, e.g. sinkers, transfer jacks, selectors, cylinder bars, and various others. Many years of experience in stamping technology enables the company to produce technically demanding parts. Most of the parts were developed in close co-operation with leading machine manufacturers.

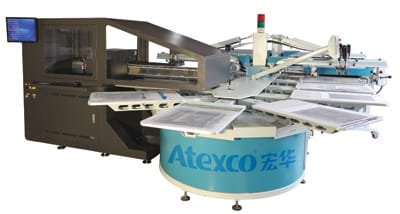

Atexco digital textile printer for T-shirt with oval & carousels
Atexco (Hangzhou Honghua Digital Technology Stock Co., Ltd.) specialises in the R&D, manufacturing sales and service of digital ink-jet printing technology and equipment. Its products and solutions are widely used in the textiles printing, carpet printing and graphic printing industries worldwide. Atexco was established in 1992 as a key company in the Software Park in the Hangzhou Hi-tech Zone and is a serial winner of the prestigious National Torch Prize. In South India, Unity Overseas from Tirupur looks after the sales and after sales service of Atexco Printers. Given is one of its latest innovations:
Tjet Digital Printer (A perfect solution for T-shirt with oval & carousel)
Features: • Combine Digital Printing With Oval or Carousel Printing • Pigment Inks • Linear Motor • Beam Patent Applied
Technical Features: • Model: T-jet • Print Head & Quantity: SG1024/2C,8, 12 heads 12/24PL • Ink Color: 4colors C/M/Y/K 6colors C/M/Y/K/O/B • Printing Width: Max. 500mm* 700mm Normal 400mm* 325mm • Ink Type: Pigment • Ink Supply System: Auto-Negative Pressure Ink-Supply System And Ink Circulation System • Characteristic: Auto-Moisture, Auto Cleaning • Printing Speed: Mode OutputA4 • 8heads 4colors 600* 800dpi (4pass) 5S/Pcs • 12heads 6colors: 600* 1200dpi (6pass) 8S/Pcs • Machine Matched: Oval Printing Machine, Carousel Printing Machine • Fabric Type: Cotton, Hemp, Silk, Nylon, Polyester, Wool And Cashmere • Display: Computer Display And Touch-Panel • Windows System: Window2000, NT, XP, WIN 7etc • RIP Software: Atexco Ajet Rip • Interface: USB2.0 (Window2000?NT?XP?WIN 7etc) • Power: AC100~240V, 50HZ/60HZ 1500W • Working Condition: Temperature: 15?~35?, Humidity:30-80% • Dimension/Weight: (TBD)L2000mm*W1200mm*H1500mm 1500KG.

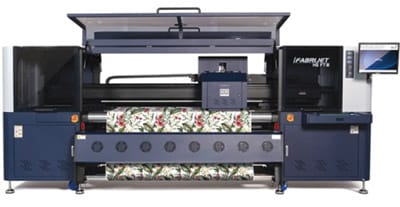

DGI launches two new industrial sublimation printers
DGI has been successfully entered the market with their FT series from 2014 with Panasonic and Kyocera printhead in industrial level textile printers. This year on SGIA Expo 2018, DGI is aiming in upper segment of 10 ft soft signage printer and industrial sublimation textile printers.
One of the new models which was launched at the show is FH- 3204. FH stands for Fabrijet Hybrid, which means that the printer can print both special fabrics and sublimation paper in one machine. FH-3204 is dedicated printer for Soft Signage production for 10ft printing. DGI doubled the printing speed from previous model FT-3204X which successfully launched last year for Soft Signage market around the world. Main difference of the FH-3204 is that the printer uses industrial Kyocera printhead (FT-3204X is using Panasonic printhead) which upgrades production level and give more durability. FH-3204 can be reached up to 1,615 ft²/h on both soft signage fabrics and sublimation paper. 6 individual ink channels can be used including florescent colours and light colours. Also equipped with new dancer bar media tensioning system to prevent head strikes. Interesting new feature is printer monitoring app which can be downloaded on mobile devices which shows information about printer information such as print progress, ink level, job histories and more information about the printer connected to the application.
The other new model is HS FT III, HS FT is DGI’s industrial line up of sublimation printer. New HS FT III’s key difference is that staggering arrangement of 4 Kyocera printhead. By staggering the printhead, printing speed can be reached up to 2,690 ft²/h in 5.4ft printing width. New heavy-duty take-up system can load jumbo roll sublimation paper up to 2,000 lb in diameter of 400 inches which is about 8,700 ~ 11,000 yds roll. New HS FT III’s another new feature is the print carriage movement system now enhanced with linear motor which gives accurate jetting sequence and also gives higher production speed. Colour channels can be used up to 6 including fluorescent and light colours. NEW HS FT III also enhanced with monitoring app for mobile devices.
COOLTRANS Satellite Duplex Printing Machine
Established in 2000, COOLTRANS (Cold Transfer Textile Printing) is the turnkey solution (equipment, material, training and service) provider in China.
High speed Satellite Duplex Printing Machine is COOLTRANS’ latest innovative eco-friendly paperless transfer printing machine. It can be used for textile duplex printing as well as paper printing machine. In combination with its water based eco-friendly printing inks, low ink consumption and high colour brilliancy. It renders high precision, high speed and high quality printings to textiles.
Working mechanism: The machine employs high precision satellite transfer printing technology. Composited with front side six proprietary gravure transfer printing units and back side four proprietary gravure transfer printing units, it can conduct paperless cool transfer printing in wet State. Customized paper printing modular is available on request for printing of transfer paper.
- Applicable fabrics: This machine is applicable for cool transfer printing on woven fabric of cellulosic fibres, polyamide, polyester, wool and silk.
Main features of machine – Satellite gravure transfer printing unit: Special satellite gravure transfer printing unit is patent pending technology. The machine is featured with usefriendly operation interface, auto pattern registration system, real time monitoring and remote operation function.
User-friendly interface, auto pattern registration, real-time monitoring, remote operation: User-friendly operation interface, easy to use. Auto pattern registration system ensures pattern accurately aligned. Real time monitoring system reduces human errors and labour.
High efficient drying unit: The machine is equipped with high efficient multi-layer drying system. Effectively control the drying condition of printed fabric after high speed printing to prevent colour migration and discrepancy.
Equipment advantages: Constant tension, precise pattern registration, delicate printing effect; Short registration time, save fabric waste for pattern registration; Self-examination, auto memory and self- learning functions; High printing speed. The higher printing speed, the shaper printing result is obtained; Multifunctional design. Can be used for coating and functional finishing; Easy to operate, two technicians ran the machine. Robot lifting arm is optional; Optical fibre signal transmitting interface. All servo controlling system. Real-time monitoring and adjustment; Low ink consumption, high transfer rate, clear printing; High efficiency energy, water savings and waste reduction. High recovery rate of wastewater.
Production Flow Chart: Satellite Duplex Printing Machine employs proprietary paperless printing technology, eliminates the “the printing process of transfer paper,” greatly reduces the printing cost. Innovative textile duplex printing effects leads the fashion trend. In combination with rapid Fixation System for cellulosic and polyester fibres, the steaming process can be saved, greatly increase the productivity.
New surface finishing solutions by Santex Rimar
Santex Rimar Group, a leader in knitted, woven fabrics, technical textiles, and nonwovens solutions successfully attended ITMA ASIA 2018 in Shanghai with two separate booths for finishing and weaving. The group presented the new surface finishing solutions under Sperotto Rimar brand: Softa – high speed brushing – and Velura – high speed raising – running machines at the five-day fair. Cavitec displayed Cavimelt P+P Line, the new hotmelt coating and laminating line with rotogravure system, perfect for sportswear productions, developed to be highly productive, precise, operator friendly and cost effective, the group said. Smit presented the new GS980 F: the fastest free flight rapier machine for an outstanding terry quality. With seven different working widths, from 220 to 360 cm, Smit GS980F is perfect for weaving terry towels or bulk terry, in one or several panels.
To further strengthen the dialogue between East and West opened in 2017 with Future Textile Road event in Urumqi (Xinjiang), Santex Rimar Group signed a partnership project with Donghua University – College Of Textiles to keep exploring the growth of the new textile industry and building strong relationships with international students to impact the textile industry further developments, in a cutting-edge dialogue between mechatronics and technology, textile engineering and machine manufacturing, study and experience.
Every year Santex Rimar Group will award two among Donghua University – College of Textiles – best students with a scholarship and a training period at the headquarters based in Vicenza (Italy) – one of the most important Italian textile and fashion districts.
SKYJET Textile synchro double digital printer
Sky Air-ship Digital Printing Equipment Co., Ltd (here in after called Sky Air-ship Company) is one of pioneers that specialize in research and development of digital printing equipment’s in China, and is the high and new technology enterprise approved by state. Also it is the printing technology developer with the most technology patents, and is one of the most large-scale outdoor digital printing equipment manufacturers in China. SKYJET brand printer adopts unique cylinder & arch-shaped printing structure, which is provided with synchro double side printing function, and is the exclusive type of printer that is applied for national patents on transmission structure as well. SKYJET TD1800S Textile synchro double digital printer is its latest innovation.
What is digital textile printing defective workmanship?
When compared with traditional textile printing way, Digital printing colour shows obviously defective workmanship because digital textile uses No-layout and Non-touch textile printing way.
- Bad ink penetration, obviously colour difference between front and back side
- Low ink Tensity, black colour doesn’t show enough black and real decorous and layering image effect cannot be showed
- Textile has stripe spots, spot and bigger colour pattern is not homogeneity
- Plush textile can’t be successfully penetrated
Double sided textile one shape printing technology
SKYJET TD1800S combines traditional with digital textile printing crafts to create World Unique Double Sided One Shape Printing Technology. It can print double sides at one time to make textile no colour difference for sides, accurate alignment, printing dark colour and spot colour perfect. It can meet “One Time” Double sided textile printing needs of silk, cashmere, wool, cotton and blended fabric etc. and make “Same pattern same colour, same pattern different colour, different pattern different colour” craft come true.
World patient is its core competence
“SKYJET” is world leader of double sided printing machines and it is developing wide format printer since year of 2000 and has 12 years double sided printing technology development experience and has got the double sided printing technology patient in China, Japan, the US, the EU etc. Its Chairman Liang Jian has been awarded “Innovation Award” in 2009. SKYJET synchromous double sided printer got the name of Chine Machinery industry famous brand product.
Solutions of double sided digital printing
Silk scarf, Wool Textile, Garment Textile, Digital Dye, Home textile, Textile jeans
- Tension takes up & feed: The structure and main roller synchronous move to keep constant tension.
- Tension device: Adjust tensioning device angle to adopt different textile type tension.
- Tension adjustment: Ensuring double sided printing stability by adjusting the tension of every point of textile
- Automatic alignment: Constantly collecting textile images, automatic modify alignment errors
- Automatic printing carriage height adjustment
- Ink Volume adjustment: Ink volume can be individually adjusted both front and back side.
- Synchronize transfer: Two host data transfer, ensure printing long time steady
- Control System: Industry level PLC control system to keep steady
- Double ink circulating and abnormal ink supply protection.
